Intelligent Bus System

The Zunch Labs Intelligent Bus System is a fully integrated system that includes a range of top-of-the-line IoT infrastructure products including cutting edge software and services.

Intelligent Bus Overview

Advanced Satellite Tracking Service


Video Surveillance

Wi-Fi Hot Spot

Monitoring and Administrative Dashboards

Intelligent Bus Overview Advanced Satellite Tracking Service

  • Standard OBD-II / J1939 interface (plug & play)
  • Real-time positioning and GPS / 3G / 4G tracking
  • Geofencing
  • Track history (playback)

Intelligent Bus Overview Telemetry

  • Remote and online monitoring and status
  • Fuel management
  • Speed ​​monitoring
  • Speed ​​limit alarm
  • Reminder of maintenance
  • Permissions-based dashboards

Intelligent Bus Overview Video Surveillance

  • 4 Channel dash cam and digital video recorder
  • Streaming live and real-time monitoring
  • 4 HD cameras: driver, passengers, front and rear
  • High-speed HDMI interface
  • Night vision
  • Accident detection and emergency alerts
  • Motion detection and parking monitoring

Intelligent Bus Overview Wi-Fi Hot Spot

  • Offers high performance vehicle area network (VAN)
  • Provides connected vehicle awareness
  • Purpose built for vehicles
  • Provides secure intelligent communications
  • Network management in the cloud
  • Up to 50 concurrent clients

Intelligent Bus Overview Monitoring and Administrative Dashboards

  • Video feed dashboard
  • Telemetry dashboard
  • Alerts dashboard
  • GPS dashboard
  • Permissions-based dashboards
  • Analytics admin dashboard

Intelligent Bus Overview Monitoring and Administrative Dashboards

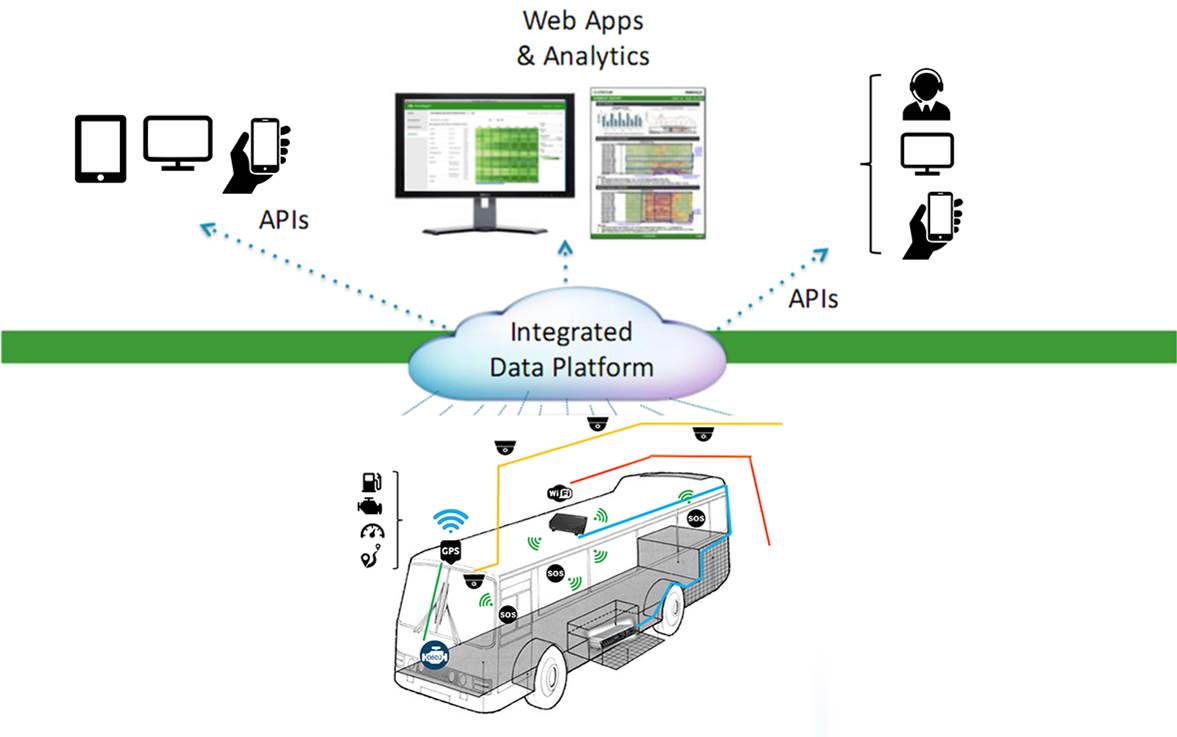

Intelligent Bus Overview Diagram

Intelligent Bus Overview Hardware – Zunch Labs 4-Channel Dash Cam and Image Sensors

  • 4G Live Viewing
  • Real-Time GPS Tracking
  • Remote Playback
  • 720P Resolution Video
  • Storage up to 256GB
  • Tamper Proof
  • Night Vision Capable

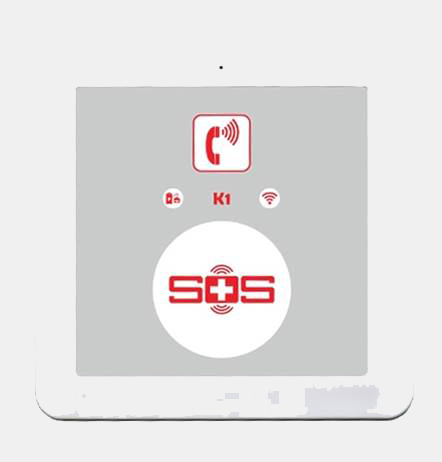

Intelligent Bus Overview Hardware – Panic Button

  • Triggers real-time tracking alert
  • Two-way conversation
  • SOS alarm/alert
  • Remotely listen in
  • Waterproof/tamperproof
  • Triggers SMS alert
  • Triggers dash cam to record events
  • Three panic buttons onboard (driver, front passenger and rear passenger)

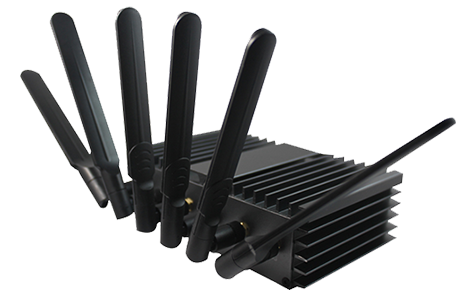

Intelligent Bus Overview Hardware – LTE-A High Performance Vehicle Router/Wi-Fi Hot Spot

  • LTE-Advanced (Carrier Aggregation) Wide Area Network (WAN) supporting up to 300 Mbps downlink speed
  • LTE coverage with automatic 3G fallback (HSPA/EV-DO)
  • Built-in 9-Axis Accelerometer for driver behavior, motion sensing
  • IP64 for resistance to dust and water ingress, and exceeds the MIL-STD-810G specification for shock, vibration, temperature and humidity, and an aluminum chassis for heat dissipation
  • Direct interface to Vehicle Diagnostic Port supporting both Light Duty (OBD-II) and Heavy-Duty (J1939) vehicles
  • 4-port Gigabit Ethernet and next generation 802.11ac Gigabit Wi-Fi (3 x 3 MIMO) to support up to 1.3 Gbps, multiple SSIDs, Passenger Wi-Fi Captive Portal and WPA2 Enterprise

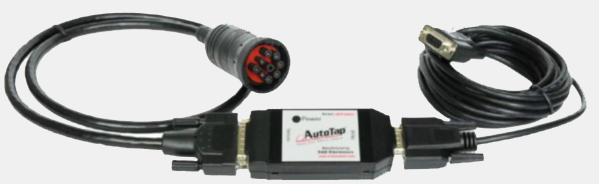

Intelligent Bus Overview Hardware – JBUS Telemetry Sensor

  • Reporting Interval 30 Seconds
  • Ignition Events and Alerts
  • Max Speed Alert
  • Posted Speed Alert
  • Idle Alert
  • Rapid Acceleration Alert
  • Harsh Braking Alert
  • Check Engine Alert
  • Maintenance Alerts
  • Tampering Alert
  • Tow Alerts
  • Geo-Fencing

Intelligent Bus Overview Hardware – ChargeGuard

  • Turns on peripherals when you want them on
  • Turns off peripherals when you NEED them off
  • Saves battery wear and tear, and extends battery life
  • Protects peripherals in the event of electrical system problems
  • Reduces maintenance & service calls
  • Installs easily with simple set up
  • Convenient override/test button for testing and emergencies
  • Selectable timeout delay
  • 30 Amp load current rating
  • Reverse polarity protection
  • Override/test button

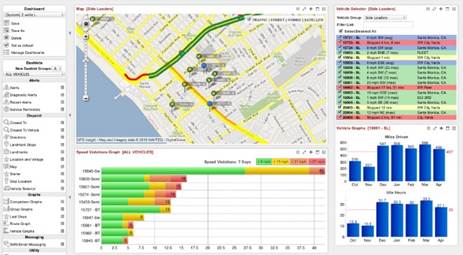

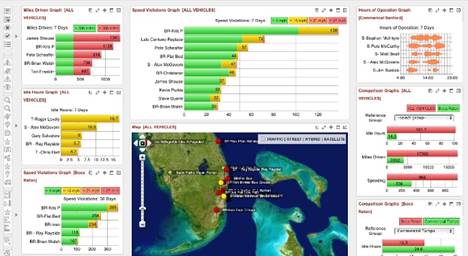

Intelligent Bus Overview Dashboards

  • Advanced reporting tools to monitor vehicles in real time via Google Maps
  • 24/7 tracking
  • Historical data and powerful analysis tools to help manage fleet
  • Driver behavior reporting to minimize fuel-wasting behaviors and ensure safe driving
  • Online reports that can be printed or downloaded as an Excel, Word or Adobe PDF file
  • Animated Map Replay to retrace a vehicle’s route on a map
  • Bread crumb trails of each stop and change in direction
  • GPS data on vehicle location, speed, directional heading and street address
  • Real-time mapping for effective routing
  • Customizable alerts
  • Notifications for inactivity, speed limit exceeded, driver performance, arrival and departure times
  • Live-stream
